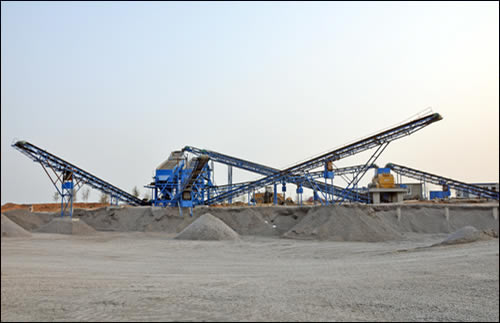

Belt Conveyer

Introduction of Belt Conveyer

The conveyers consist of standard parts, which are advanced and simple in structure, easy to maintain. Our vibrating equipment is adaptable for stationary and mobile crushing plants. They are widely used in mining, metallurgical and coal industry to transfer sandy or lump material, or packaged material. According to different transferring equipment, the transfer system can be one independently or multi-conveyers or combined with other transfer equipments. The belt conveyer can be installed horizontally or aslope to meet the needs of different transfer lines.

The belt conveyers produced by SJLC can be operated in the circumstance temperature range from -20℃ to +40℃. The temperature of transferred material by this belt conveyer should be lower than 50℃.

The types of the belt conveyers produced by SJLC are as follows

1. Devided by Driving Method:
　a. STD—Mechanical Drive
　It’s driven by cycloidal pinwheel reducer (with outdoor motor ) and chain-drive mechanism.
　b. STDJ Ⅱ Mechanical Drive Series .
　It adopts upside-down reducer and belt-drive mechanize.
　c. STD-Electric Rotor Drive Series
　It’s driven by electric rotor.

2. Divided by Installation Methods
　a. Fixed Series
　It’s directly installed on foundation.
　b. SDY-Portable Series
　It’s equipped with type for moving and slope adjusting capability, It can be Easily, it can be reely moved and adjusted by different transfer requirements

3. Divided by Structures:
　The belt conveyers produced by SJLC have three different structures.
　a. U-steel
　b. Frame
　c. Truss

Note about Belt Conveyer

There are two kinds of conveyers, one equipped with repairing walkway while the other without. When ordering the machine, the customers should give us clear instruction.

Specifications of Belt Conveyer

Note about Belt Conveyer

1. The capacity in this table is the transferred quantity calculated under the following conditions: the density of the transferred material is 1.0t/ m3～1.6t/ m3, the transferring angle is ≤18℃, and stacking angle of the transferred material is 30.

2. The belt conveyer is used to transfer the material the density of which is less than 2.5t/ m3 .

3 .The length of the belt conveyer is limitless. We can design and manufacture it according to customers' special requests.
